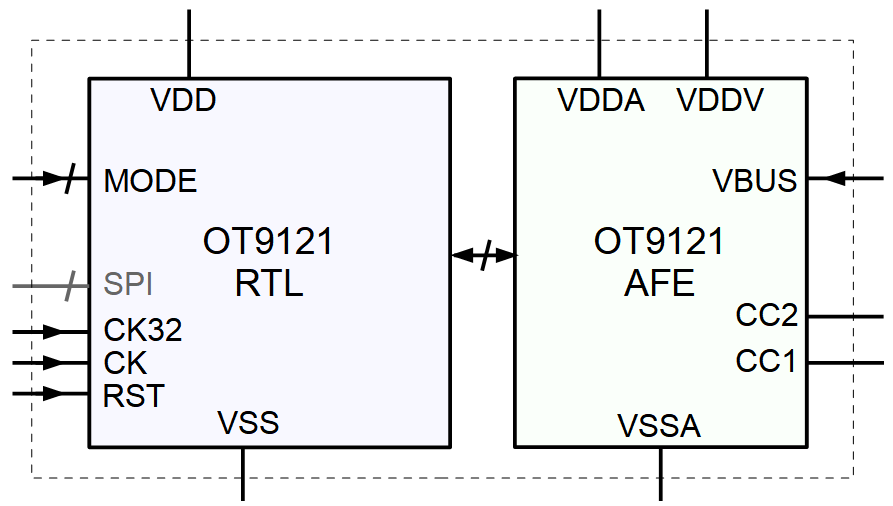

This OT9121 is an easy to integrate and configure Type-C sink port with Power Delivery. It is delivered as RTL and an Analog Front End hard macro. No processor, software, or external memory is required. Re-uses much of Obsidian’s mature and widely used Type-C logic and analog IP. The IP controls the power supply directly. An external IP is available for clock generation which does not require chip pins. Also a voltage and current reference IP for use when this is not available. Standard current and voltage PDOs are supported, but may be altered with a serial port.
Features
- USB PD 3, and Type-C compliant.
- Simplified sink only port.
- Pin controlled PDO selection
- Option for SPI custom PDO’s.
- Integrated Policy Engine.
- All RTL logic. No MPU or memory required.
- RTL pin config or SPI request config.
- Single 12MHz clock + 32KHz low power clock.
- Low power wake function.
- 0.5mm2 die area in 130nm.
- Optional VCONN outputs of 1W or 6W.
- Connects to straight through IO pads.
- Available in 55, 65, 110, 130, 150, and 180nm processes. 6 week porting available for other processes.
- FPGA based development board available.
Typical Applications
- Rapid Type-C Sink implementation.
- Type-C Power Delivery Sink
- Simple upgrade to externally powered systems or charger devices.
Deliverables
- Verilog simulation model.
- Verilog RTL.
- Timing files.
- AFE macro in GDS and LEF forms.
- AFE Macro CDL files.
- Design review spice files.
- Integration notes.
- Production test notes.
- Data sheet.
.
