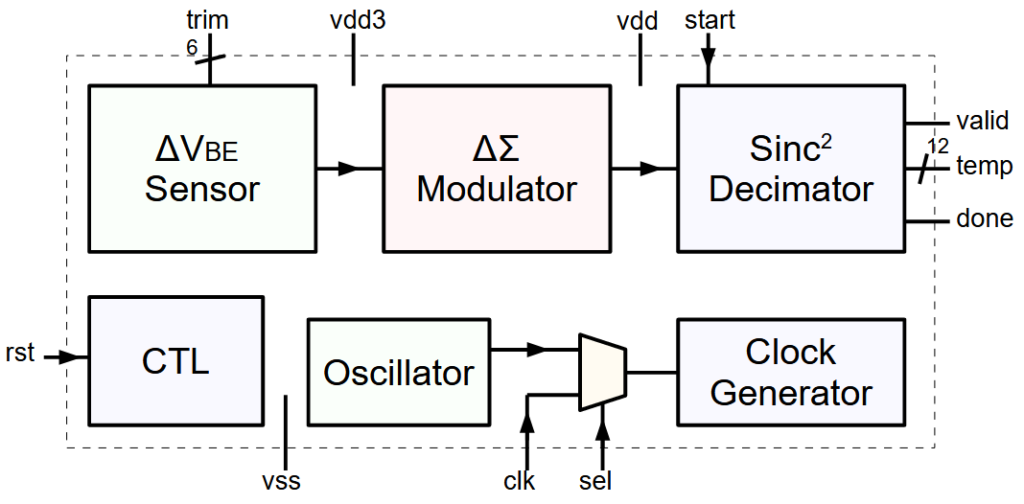

The OT6021 is a high accuracy die temperature to digital sensor for the UMC 55nm ULP process. It samples the die temperature from an asynchronous start signal and delivers a 12 bit temperature result in 2ms. It can run with an internal oscillator or with an external 8MHz clock. There is a 6 bit optional trim input. The IP can operate without trimming at a reduced accuracy.
Features
- 2.4 to 3.6V + core voltage operation.
- 12-bit two’s complement output, 0.0625°C/LSB (LM75/TMP102 format).
- Better than ±1°C (3σ) accuracy from -40°C to 125°C after single-point trim.
- 3σ untrimmed accuracy of ±2.3°C.
- 6 bit single point trimming.
- Selectable external 8MHz clock or internally clocked.
- First-order delta-sigma conversion with sinc² decimation over 2048 cycles.
- Trimmed IPTAT output currents can be provided.
- 0.11µA average current at one reading per second.
- Small cell area: 0.04mm².
Service
- $22K multi-use pricing.
- 6 months support included.
- Available detailed design review.
- 4 Weeks lead time for process ports to similar technologies.
Typical Applications
- Die temperature monitoring and thermal shutdown.
- Power path and charger temperature management.
- Low duty-cycle system temperature sensing.
Deliverables
- Verilog model and test bench.
- CDL netlist for LVS.
- Design review spice files.
- GDS format layout.
- LEF file.
- Timing files.
- Integration notes.
- Production test notes.
